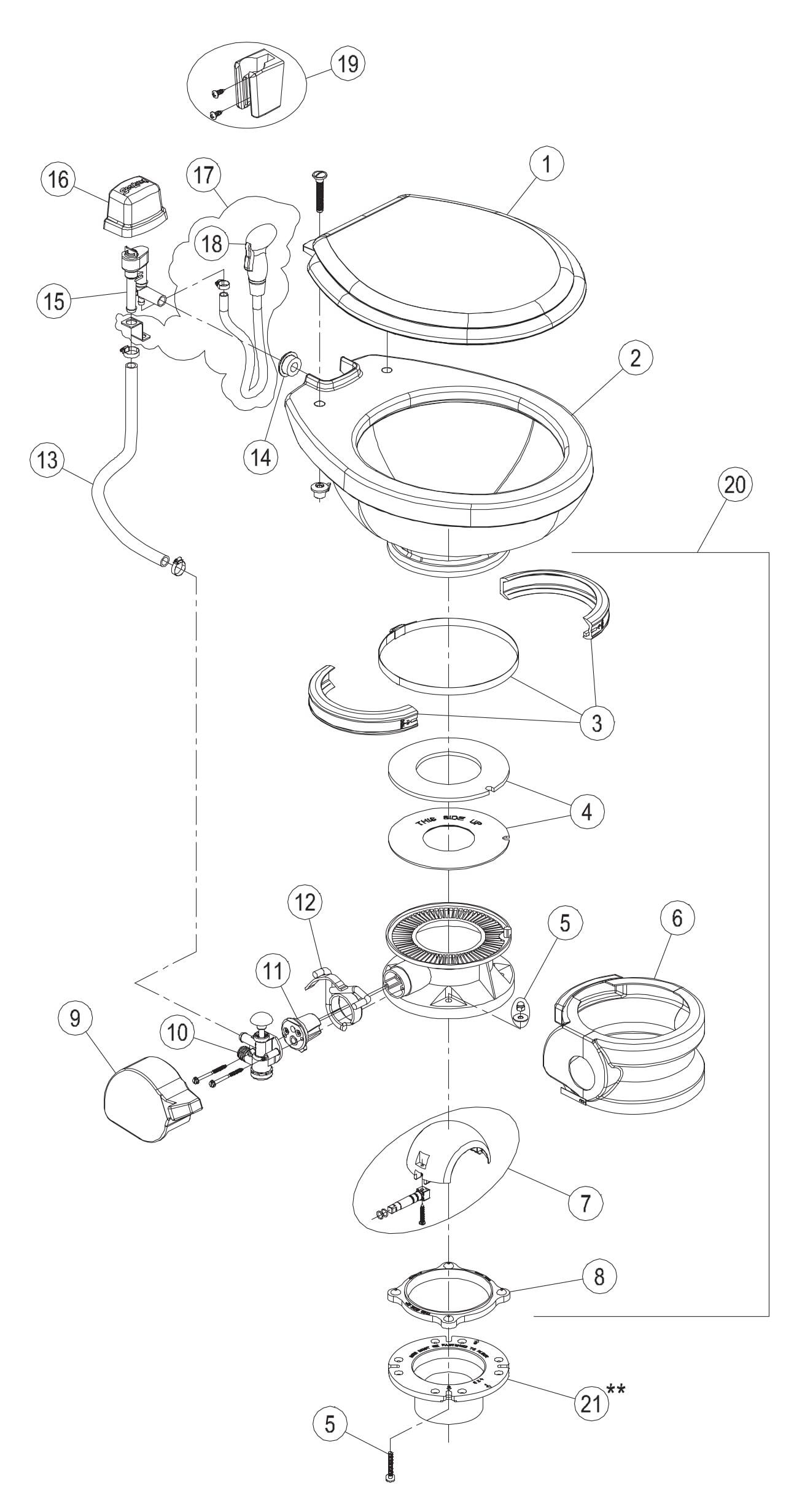

111 Traveler Lite Parts


ITEM PART NO. DESCRIPTION
1 385344088  SEAT ASSEMBLY, WHITE
385344089  SEAT ASSEMBLY, BONE
2 385310790  CHINA BOWL, WHITE
385310791  CHINA BOWL, BONE
3 385310048  BAND AND HALF CLAMP, KIT-BONE
385310025  BAND AND HALF CLAMP, KIT-WHITE
4 385311462  SEAL REPLACEMENT
5 385310064  MOUNTING HARDWARE
6 385311559  BASE KIT,WHITE (includes 3-11 & 20)
385311560  BASE KIT,BONE (includes 3-11 & 20)
7 385318162  BALL,SHAFT & CARTRIDGE KIT, WHT
8 385311551  KIT, PEDAL COVER, WHITE
385311552  KIT, PEDAL COVER, BONE
9 385314349  WATER VALVE
10 385236096  SPRING CARTRIDGE, KIT
11 385311553  FLUSH LEVER & CARTRIDGE, KIT
12 385340177  HOSE, SUPPLY-BONE
385345377  HOSE, SUPPLY-WHITE
13 385316906  VACUUM BREAKER (not for use with spray)
385230335  VACUUM BREAKER (for use with spray)
14 385310795  VACUUM BREAKER COVER, WHITE
385310796  VACUUM BREAKER COVER, BONE
15 385319054  VACUUM BREAKER KIT, SPRAY INCLUDED
16 385311124  HAND SPRAY KIT
17 385230319  HAND SPRAY BRACKET / SCREWS
18 600341549  FLOOR FLANGE GASKET
19 SEE LINK  FLOOR FLANGE
20 385310108  PEDESTAL COVER, WHITE
385310109  PEDESTAL COVER, BONE
Displaying 1 to 12 of 26
