Product Description

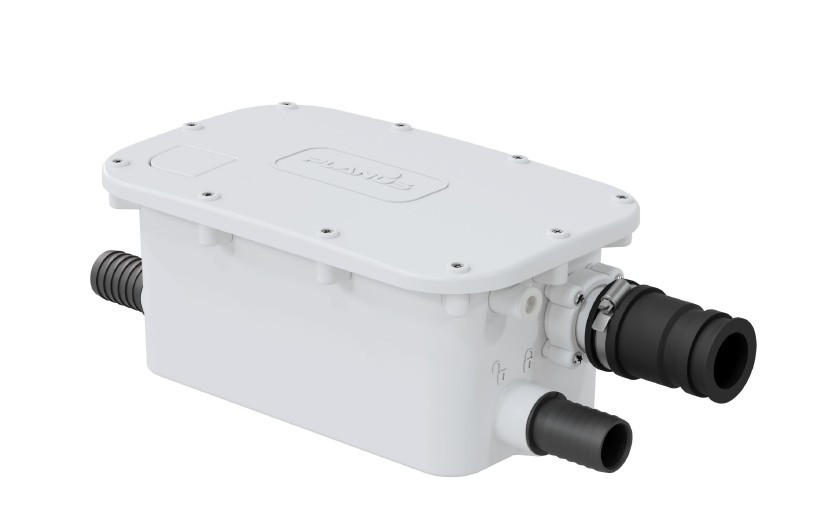

Compact-Lift
High Performance, Minimal Dimensions
Our new grey water transfer unit is finally ready for onboard installation.
Compact Lift is the perfect solution for those who require reliable performance in extremely limited spaces. It is specifically designed to meet the needs of shipyards and yacht owners who refuse to compromise on quality and functionality.
Key Features
- Ultra-compact design

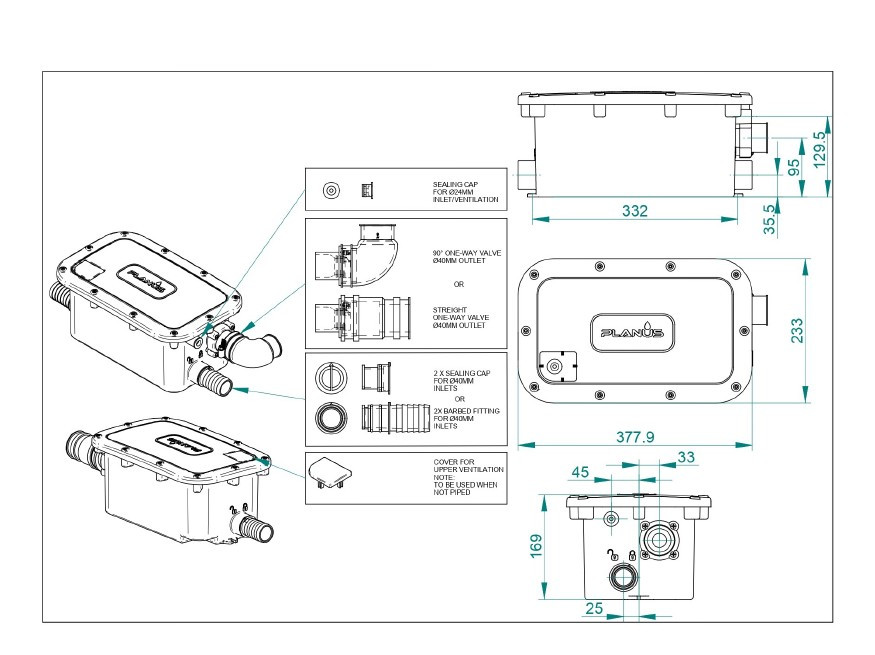

Only 169 mm in height, ideal for installation in tight technical compartments or limited-access areas.
- IP68 protection

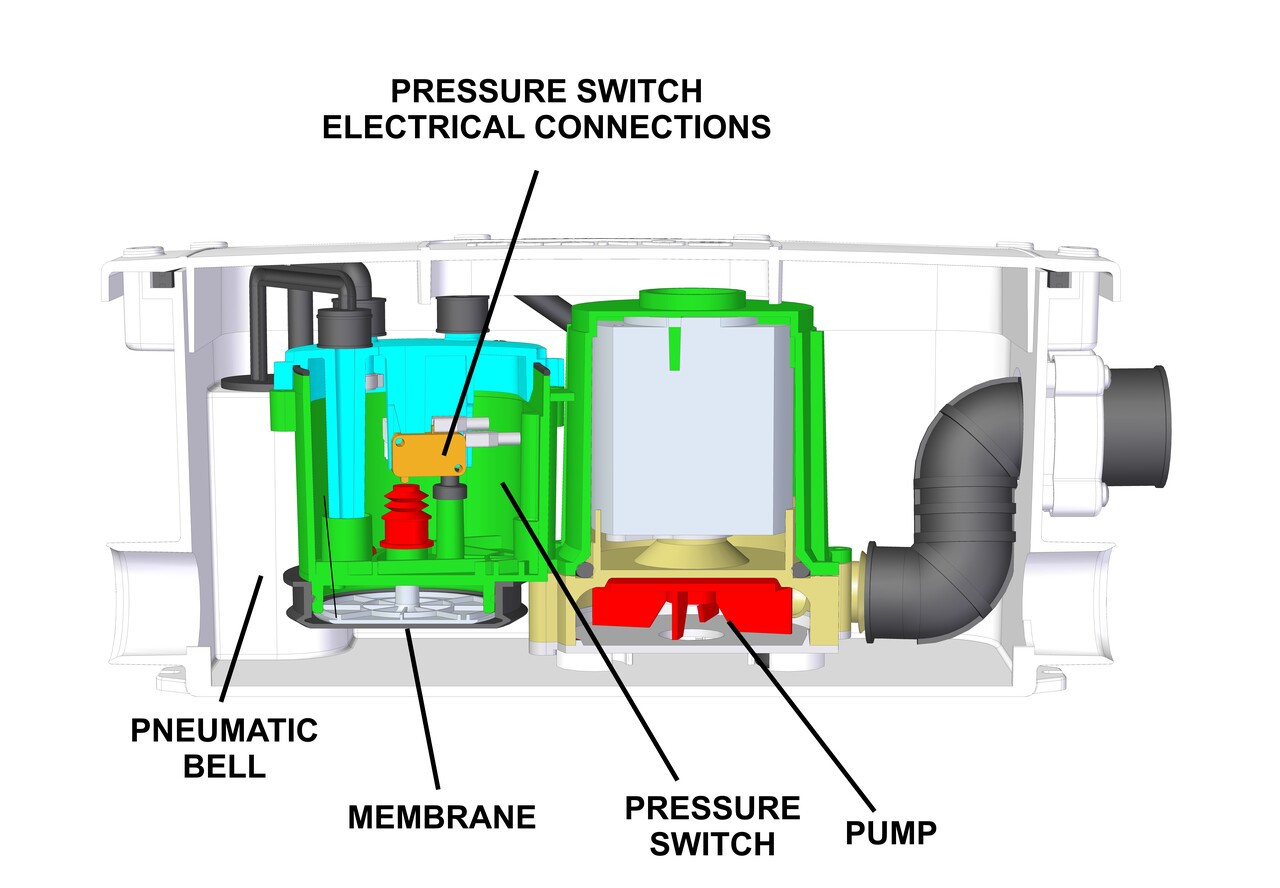

Fully watertight construction, perfect for use in marine environments and areas exposed to moisture. Patented membrane system with a sealed pressure switch, fully protected from the external environment.
- Flexible outlets
Comes with 90° or straight fittings (optional), adaptable to different piping configurations.
- Versatile ventilation
24 mm vent, available in top or side positions, offering greater installation flexibility.
- External non-return valve
Easy to inspect and maintain, providing maximum protection against backflows.
- Multiple inlets
2 inlets of 40 mm
1 inlet of 24 mm
All supplied with caps for maximum adaptability.
- Power supply options
Available in:
12Vdc
24Vdc
230Vac
