Product Description

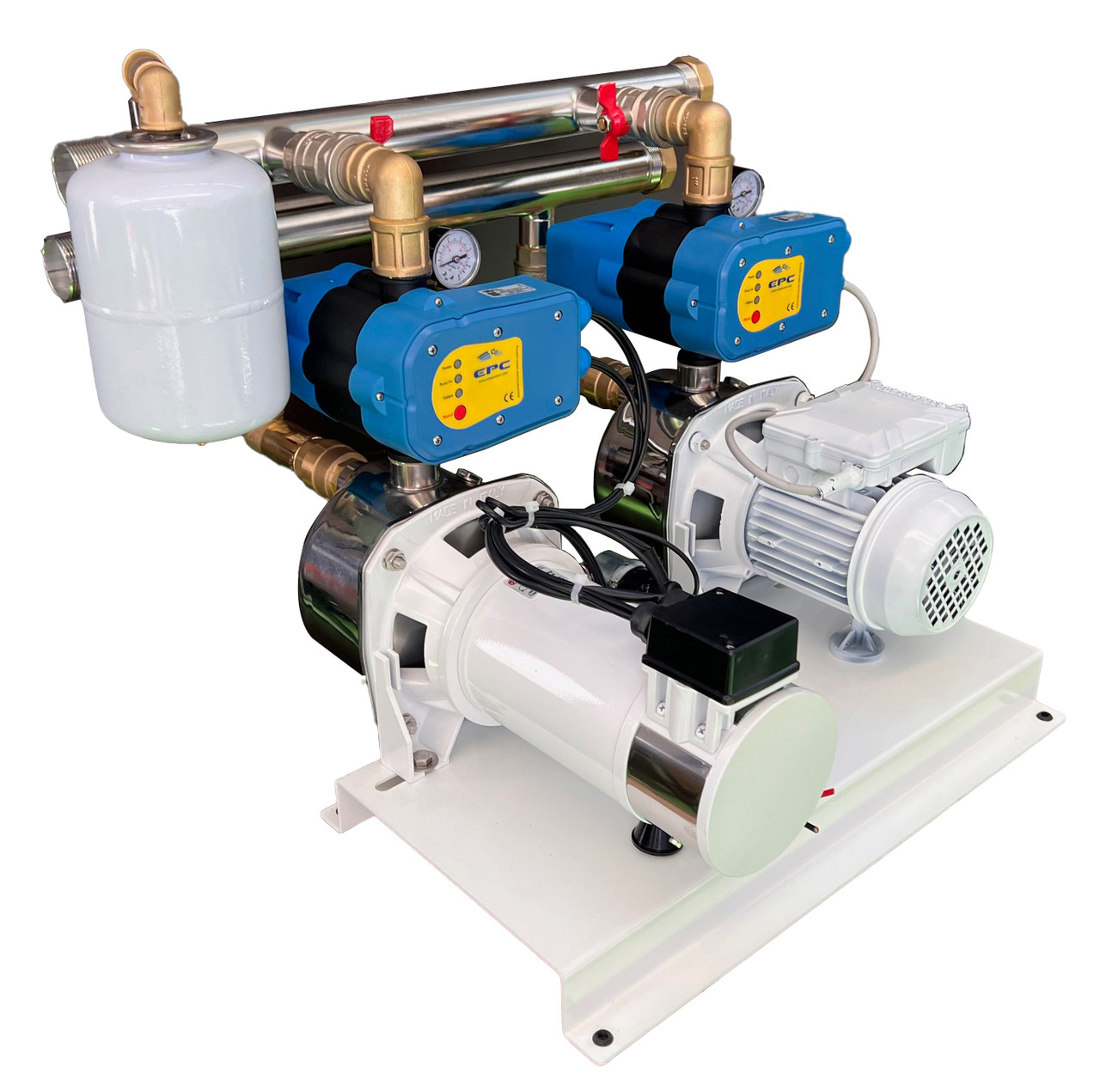

The GDE-J series are unitized pairs of redundant pumps and pressure controllers that provide a ready-made solution to supplying freshwater on your boat. The GDE-J series use pumps of stainless construction and rubber impellers. On the J/3, one of the pumps is a 24VDC pump and the other 230VAC, allowing overnight operation of a single pump without use of a generator or the need for an inverter. The pump housings are cast and machined from AISI 304 stainless steel, with AISI 316 stainless pump shafts.
Because these pumps have rubber impellers, dry-run time should be limited to what is required to prime the pump.
The GDE series is also available from CEM in the J/1 configuration, with two 24VDC pumps, and in the J/2 configuration, with two 230VAC pumps.
Product Features:
- IP44 and IP55 environmental protection rating for DC and AC motors respectively
- Self-priming with up to 6m of lift
- Regulated 4.2bar output pressure
- 55L/min flow rate per pump, 110L/min combined
- Additional accessories included in the GDE unit include ball valves for each inlet and outlet (4 total), non-return valves for each inlet (2 total), an electronic pressure controller for each pump, a stainless manifold, and the pump base with anti-vibration mounts.
- Continuous duty motors
- Made in Italy, with pumps and motors manufactured in-house by CEM.
On request, any CEM product may be tested in accordance with the classification requirements of Lloyd's Register, RINA, DNV, or Bureau Veritas.
We only actively stock the products selectable with the options above, however we are always expanding our offerings and are happy to take special requests for any CEM product.
