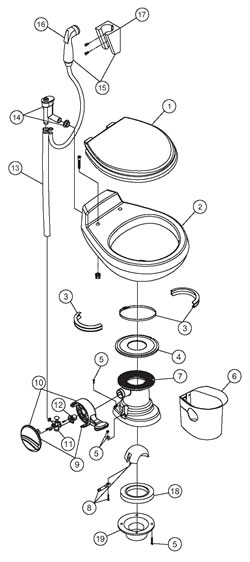

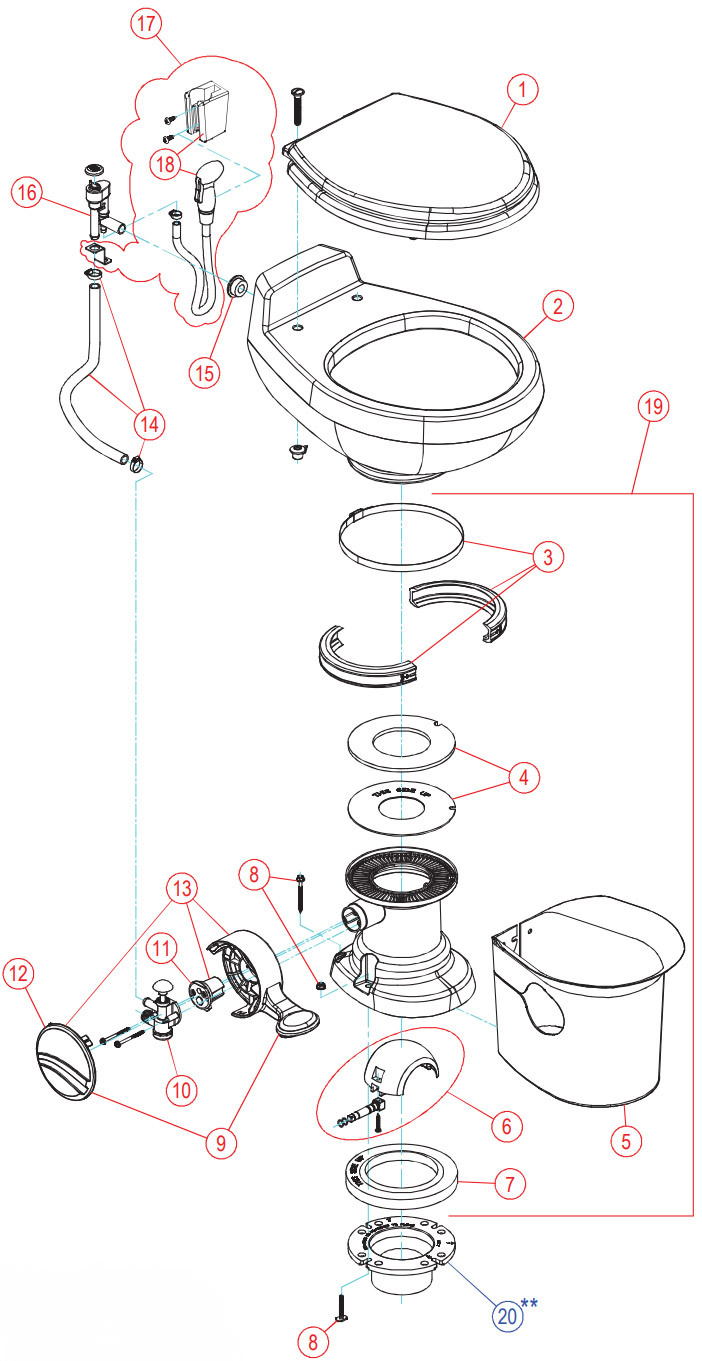

510H Traveler Toilet Parts


ITEM PART NO. DESCRIPTION
1 385343829
 SEAT ASSEMBLY, WHITE
385343831
 SEAT ASSEMBLY, BONE
2 385310739  CHINA BOWL KIT, WHITE
385310740  CHINA BOWL KIT, BONE
3 385310048  BAND AND HALF CLAMP-KIT, BONE
385310025  BAND AND HALF CLAMP-KIT, WHITE
4 385311462  SEAL REPLACEMENT, KIT
5 385311117  MOUNTING HARDWARE
6 385311540  KIT,PEDESTAL COVER - WHITE
385311541  KIT,PEDESTAL COVER - BONE
7 385311128  BASE KIT, WHITE (includes 3-5,7-12)
385311129  BASE KIT, BONE   (includes 3-5,7-12)
 8  385310954
 BALL, SHAFT & CARTRIDGE KIT
9 385311119  PEDAL & COVER, WHITE
385311120  PEDAL & COVER, BONE
 10  385311121  PEDAL, CARTRIDGE, WHITE 10 & 20
385311122
 PEDAL, CARTRIDGE, BONE  10 & 20
 11  385314349  WATER VALVE
12 385310683  SPRING CARTRIDGE
13 385340177
 HOSE,SUPPLY- BONE
385345377
 HOSE, SUPPLY-WHITE
14 385316906
 VACUUM BREAKER, KIT-(FOR USE WITHOUT SPRAY)
385230335
 VACUUM BREAKER, KIT-(FOR USE WITH SPRAY)
15 385319054
 VACUUM BREAKER WITH SPRAY (includes 15,16,17)
 16  385311124
 HAND SPRAY
 17  385230319  BRACKET-HAND SPRAY WITH SCREWS
18 385311267
 FLOOR FLANGE SEAL
19 LINK  ASSORTED OPTIONAL FLOOR FLANGES
