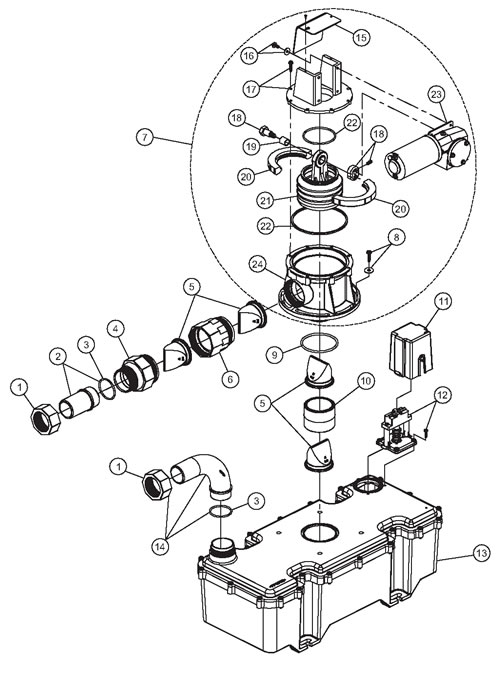

Vacuum Generator 4 (VG4)
| ITEM | PART NO | DESCRIPTION | ITEM | PART NO | DESCRIPTION |
| 1 | 385311212 | SWIVEL NUT 1 1/2" | 14 | 385311218 | HOSE FITTING-ELBOW (includes item 1 & 3) |
| 2 | 385311211 | HOSE FITTING-STRAIGHT (includes item 1 & 3) | 15 | 385311231 | JW-PUMP COVER |
| 3 | 385311238 | O'RING | 16 | 385311224 | MOTOR MOUNTING HARDWARE |
| 4 | 385311210 | 2" TRANSITION FITTING TO 1-1/2" | 17 | 385311225 | TOP CLOSURE w/ MOUNTING SCREWS |
| 5 | 385311208 | 2" DUCK BILL REPLACEMENT KIT ( 2 PACK ) | 18 | 385310644 | KIT, ECCENTRIC/SCREW-S/T/J PUMP |
| 6 | 385311209 | 2" VALVE ADAPTER | 19 | 385310242 | BELLOWS BUSHING |
| 7 | 385311229 | JW-PUMP REPLACEMENT 12VDC | 20 | 385311226 | BELLOWS CLAMP KIT |
| 385311230 | JW-PUMP REPLACEMENT 24VDC | 21 | 385230980 | BELLOWS ASSY (includes item 19) | |
| 8 | 385311220 | J-PUMP MOUNTING HARDWARE | 22 | 385310151 | O'RING REPLACEMENT KIT |
| 9 | 385311213 | O'RING | 23 | 385311065 | W-SERIES MOTOR REPLACEMENT 12VDC |
| 10 | 385311214 | 2" DUCK BILL VALVE COLLAR | 385311066 | W-SERIES MOTOR REPLACEMENT 24VDC | |
| 11 | 385311215 | VACUUM SWITCH COVER | 24 | 385311227 | J-PUMP BODY |
| 12 | 385311216 | VACUUM SWITCH ASSEMBLY | N/S | 385311219 | TANK SEAL (NOT SHOWN) |
| 13 | 385311217 | TANK ASSEMBLY |
