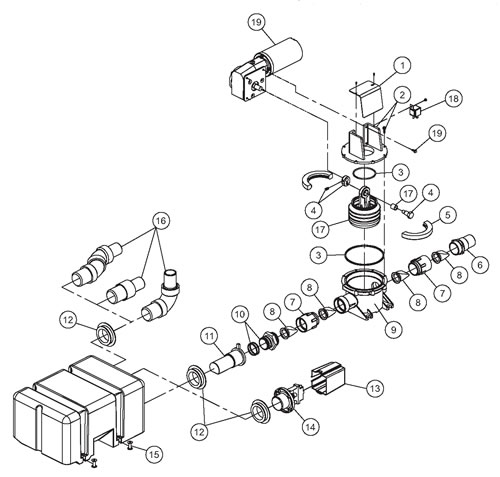

Low-Profile Vacuum Generator (VG3)
| ITEM | PART NO | DISCRIPTION | ITEM | PART NO | DESCRIPTION |
| 1 | 385311323 | PUMP COVER KIT | 15 | 385311318 | TANK MOUNTING SPINDLE |
| 2 | 385311324 | S PUMP TOP CLOSURE W/SCREWS | 16 | 385310635 | INLET ELBOW ASSEMBLY |
| 3 | 385310151 | "O" RING KIT | 385310690 | STRAIGHT INLET (OPTIONAL) | |
| 4 | 385310644 | ECCENTRIC KIT | 385310787 | 45 DEGREE INLET ELBOW (OPTIONAL) | |
| 5 | 600347807 | BELLOWS CLAMP (2 req'd) | 17 | 385230980 | BELLOWS KIT (INCLUDES BUSHING) |
| 6 | 600347800 | VALVE NIPPLE | 18 | 600344239 | RELAY,SPDT-12VDC |
| 7 | 600347801 | VALVE ADAPTER | 385311423 | RELAY,SPDT-24DC | |
| 8 | 600347802 | DUCK BILL VALVES (4 required) | 19 | 385311065 | WHISPER MOTOR 12VOLT DC (REPLACEMENT) |
| 9 | 600341504 | PUMP BODY | 385311066 | WHISPER MOTOR 24VOLT DC (REPLACEMENT) | |
| 10 | 385311317 | PUMP ADAPTER TO DIPTUBE FIT | 385311423 | WHISPER MOTOR UPGRADE KIT 12VDC (incl.3-5, 17, 19) | |
| 11 | 385310754 | DIP TUB LOW PROFILE VG (inc. item 12) | 385311424 | WHISPER MOTOR UPGRADE KIT 24VDC (incl.3-5, 17, 19) | |
| 12 | 600342932 | 1-1/2" SEALING GROMMET | 20 | 385310249 | S PUMP LESS MOTOR (incl. 1-9 & 17) |
| 13 | 385311215 | VACUUM SWITCH COVER | N/S | 385311100 | LPVG PUMP ASSEMBLY COMPLETE 12 VDC (INCLUDES 1-9,19 |
| 14 | 385311436 | VACUUM SWITCH ASSEMBLY (inc. item 12 | 385311595 | LPVG PUMP ASSEMBLY COMPLETE 24 VDC (INCLUDES 1-9,19 |
