511H Traveler Toilet

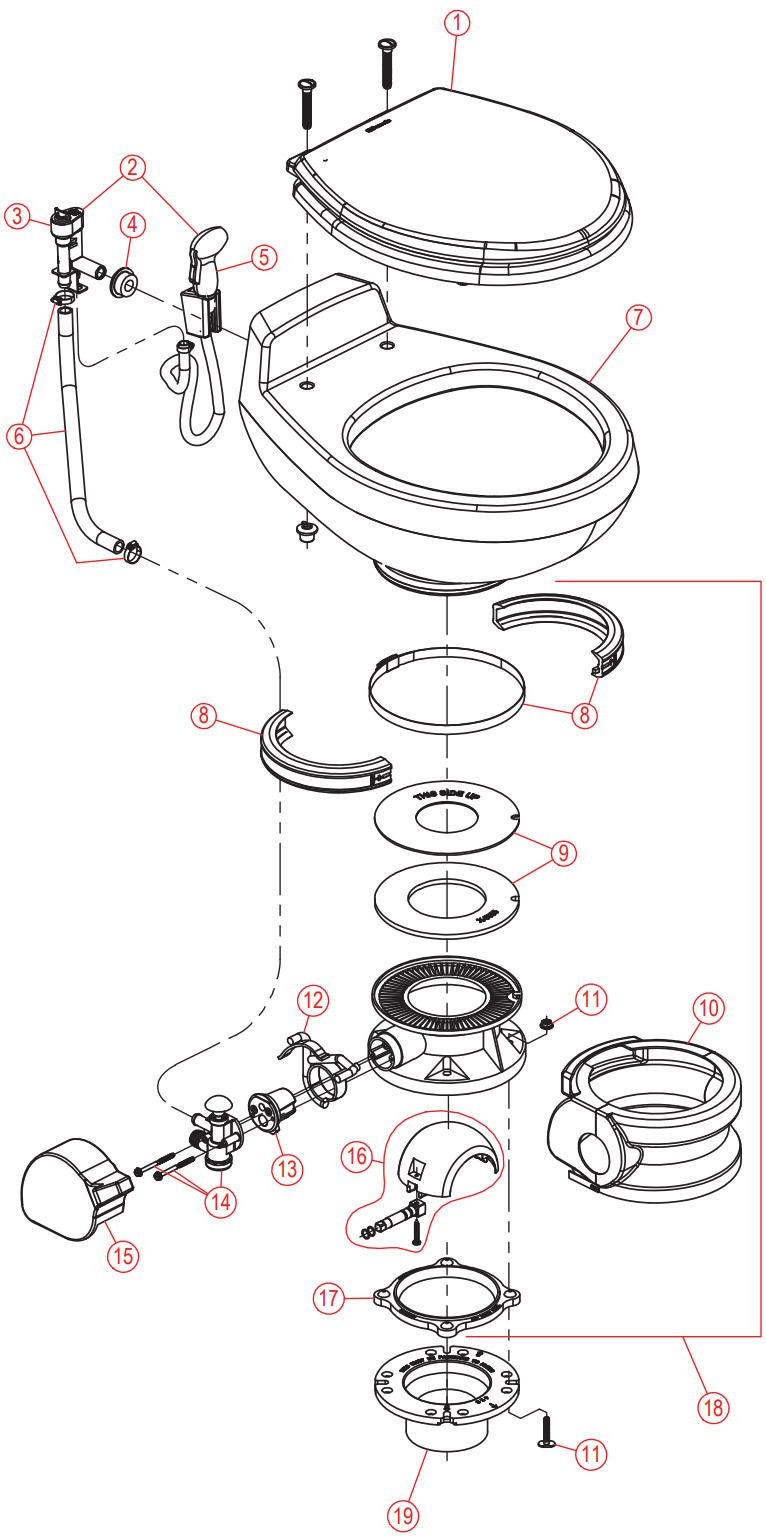

DOMETIC/SEALAND GRAVITY TRAVELER TOILET PARTS (511H TOILET)
| ITEM | PART NO. | Â DESCRIPTION |
| 1 | 385343829 |
SEAT ASSEMBLY, WHITEÂ |
| 385343831 |
SEAT ASSEMBLY, BONE  | |
| 2 | 385310739 | CHINA BOWL, WHITEÂ |
| 385310740 | CHINA BOWL, BONE | |
| 3 | 385310048 | BAND AND HALF CLAMP |
| 4 | 385311462 | SEAL KIT |
| 5 | 385310064 |
MOUNTING HARDWARE |
| 6 | 385310108 |
PEDESTAL COVER, WHITE |
| 385310109 | PEDESTAL COVER, BONE | |
| 7 | 385311559 |
BASE KIT WHITEÂ (includes items 3-12) |
| 385311560 |
BASE KIT BONEÂ (includes items 3-12) | |
| 8 | 385318162 |
BALL, SHAFT AND CARTRIDGE |
| 9 | 385311551 |
PEDAL COVER, WHITE |
| 385311552 |
PEDAL COVER, BONE | |
| 10 | 385314349 | WATER VALVE |
| 11 | 385236096 |
SPRING CARTRIDGE |
| 12 | 385311553 | PEDAL-CARTRIDGE(includes items 11) |
| 13 | 385340177 | SUPPLY HOSE, BONE |
| 14 |
VACUUM BREAKER-(FOR USE WITH SPRAY) | |
| VACUUM BREAKER-(FOR USE WITHOUT SPRAY | ||
| 16 | HAND SPRAY - WHITE | |
| 18 | 600341549 | FLOOR FLANGE SEAL |
| 19 | LINK | OPTIONAL FLOOR FLANGESÂ |
