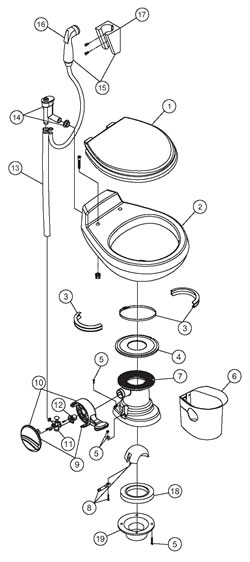

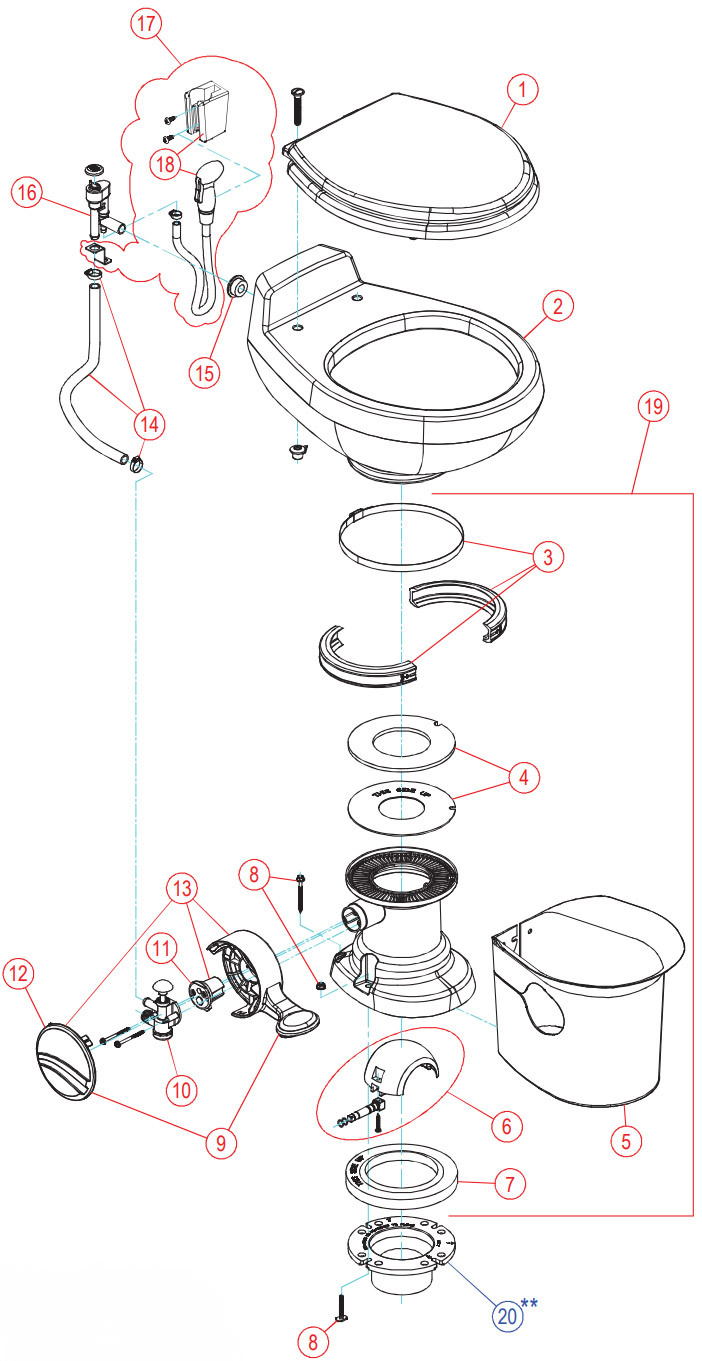

510H Traveler Toilet Parts

Sort by:


ITEM PART NO. DESCRIPTION
1 385343829 SEAT ASSEMBLY, WHITE
385343831 SEAT ASSEMBLY, BONE
2 385310739 CHINA BOWL KIT, WHITE
385310740 CHINA BOWL KIT, BONE
3 385310048 BAND AND HALF CLAMP-KIT, BONE
385310025 BAND AND HALF CLAMP-KIT, WHITE
4 385311462 SEAL REPLACEMENT, KIT
5 385311117 MOUNTING HARDWARE
 6 385311540  KIT,PEDESTAL COVER- WHITE
385311541   KIT,PEDESTAL COVER- BONE
7 385311128  BASE KIT, WHITE (includes 3-5,7-12)
385311129  BASE KIT, BONE   (includes 3-5,7-12)
8  385310681   BALL, SHAFT & CARTRIDGE KIT
9 385311119   PEDAL & COVER, WHITE
385311120   PEDAL & COVER, BONE
10  385311121  PEDAL, CARTRIDGE, WHITE 10 & 20
385311122   PEDAL, CARTRIDGE, BONE   10 & 20
11  385314349  WATER VALVE
12 385310683  SPRING CARTRIDGE
 13 385340177  HOSE,SUPPLY- BONE
385345377   HOSE, SUPPLY-WHITE
14 385316096   VACUUM BREAKER, KIT-WITHOUT SPRAY
385230335   VACUUM BREAKER, KIT-(for use with spray)
15 385319054   VACUUM BREAKER WITH SPRAY (includes 15,16,17)
16  385311124   HAND SPRAY
17  385230319   BRACKET-HAND SPRAY WITH SCREWS
18 600343938   FLOOR FLANGE SEAL
19 LINK  ASSORTED OPTIONAL FLOOR FLANGES
